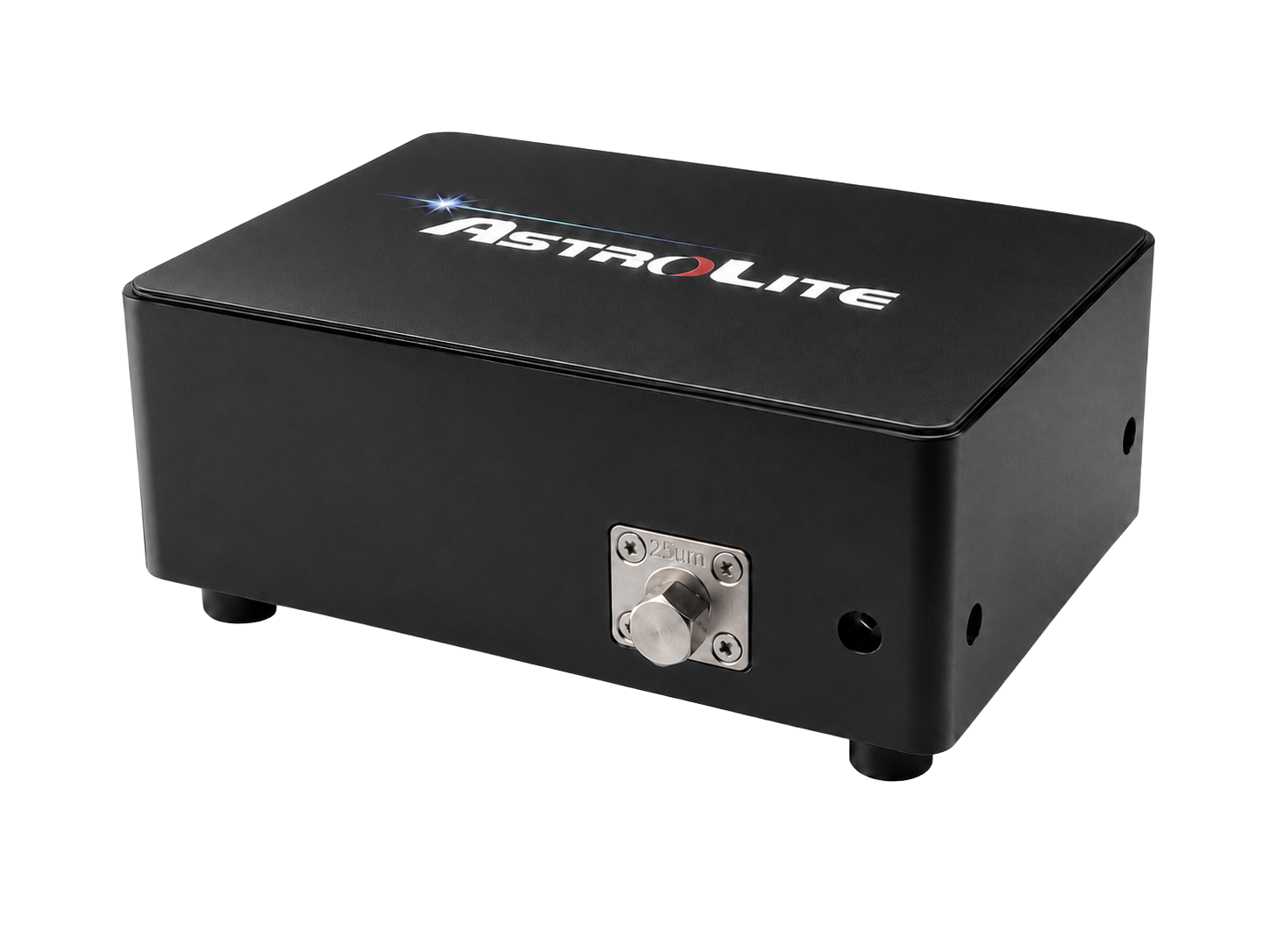

A6002A retains a compact form while providing higher signal handling, wider dynamic range, and short integration times.
Key characteristics of this model.
Higher signal response for a wider range of spectral measurements.
10,000:1 class dynamic range for measurements with larger signal variation.
Minimum integration time of 0.5 ms for rapid spectral acquisition.
USB 2.0, optional RS232/RS422, trigger modes, and SDK support for integration.
Core optical, detector, interface, and mechanical specifications.
| Wavelength range | 180–1100 nm |
|---|---|
| Detector | Hamamatsu S11639 2048-pixel linear CMOS |
| Pixel count / size | 2048 pixels, 14 µm × 200 µm |
| Optical resolution | Approx. 0.35–5 nm |
| Signal-to-noise ratio | 600:1 at full signal |
| Dynamic range | 10,000:1, single acquisition |
| Integration time | 0.5 ms–65 s |
| A/D resolution | 16 bit |
| Fiber connector | SMA905 |
| Communication | USB 2.0 and RS-232 |
| Dimensions / weight | 94 mm × 60 mm × 34.5 mm / 0.3 kg |
| Power supply | USB |
Optical resolution is an approximate configured value and depends on the wavelength range, grating, slit width, and optical setup.
Representative configurations are listed below.
| Model | Wavelength Range | Optical Resolution | Slit |
|---|---|---|---|
| A6002A-01 | 200–900 nm | ~1 nm | 25 µm |
| A6002A-04 | 750–1100 nm | ~0.35 nm | 10 µm |
| A6002A-05 | 350–1050 nm | ~1 nm | 25 µm |
| A6002A-10 | 300–1000 nm | ~1 nm | 25 µm |
| A6002A-11 | 200–1000 nm | ~1.5 nm | 25 µm |
| A6002A-13 | 400–1100 nm | ~1 nm | 25 µm |
| A6002A-25 | 180–880 nm | ~1 nm | 25 µm |
Other wavelength ranges, optical resolutions, and slit sizes are available on request.
