Light sources, fibers, and probes are presented together because customers usually select them as part of the same optical path: source → fiber/probe → sample → spectrometer.
Current light-source lineup is kept on one page. It can be split later when the product range grows.

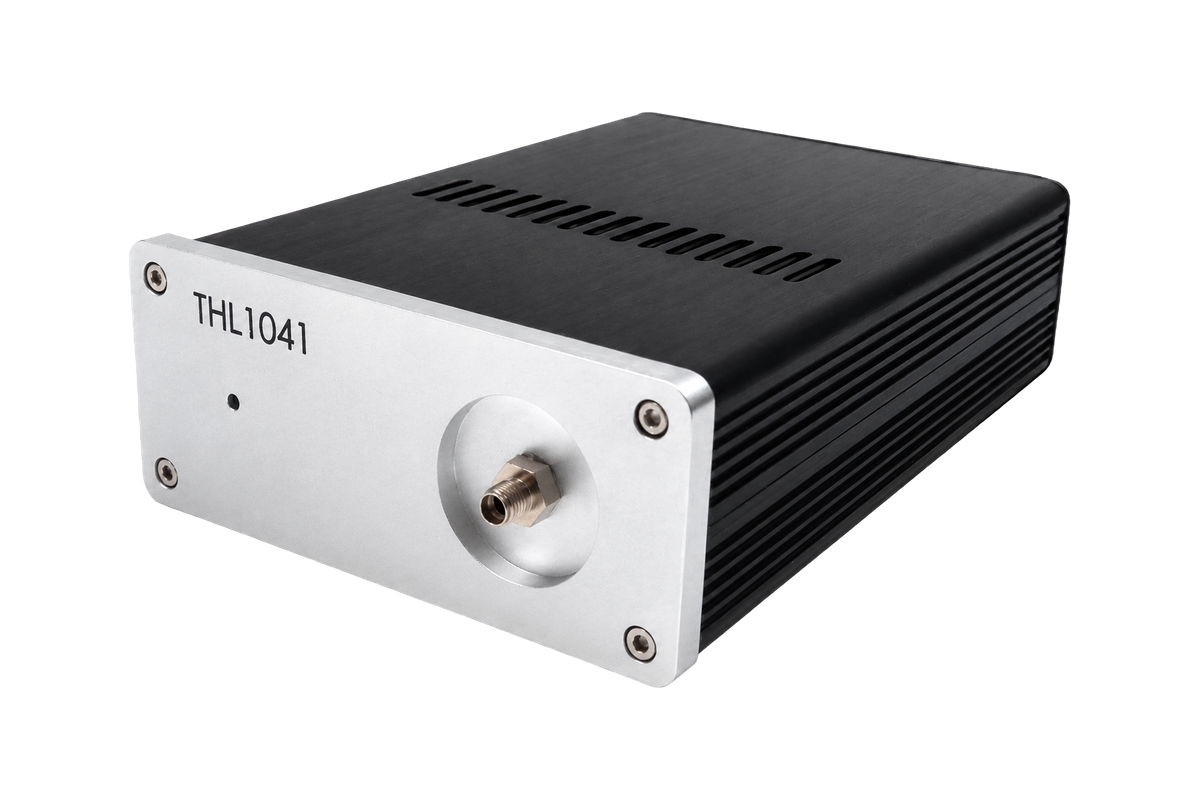

Precision tungsten-halogen source for visible–NIR spectroscopy and optical measurement setups.
One light source with deuterium and halogen-tungsten lamps for continuous UV–VIS–NIR illumination.
Optical radiation (electromagnetic radiation across ultraviolet, visible, and infrared wavelength regions)
| THL1041 type | Tungsten-halogen light source |
|---|---|
| THL1041 spectral range | 360–1700 nm class |
| THL1041 connector | SMA905 |
| THL1041 power | 6 W class |
| DHLite type | Deuterium + Halogen Tungsten |
|---|---|
| DHLite spectral range | 190–2500 nm |
| Output mode | Independent / simultaneous |
| Use case | Absorbance, transmittance, reflectance, and spectral analysis |
Fibers and probes are described as optical path components, not as a separate header-level product family.

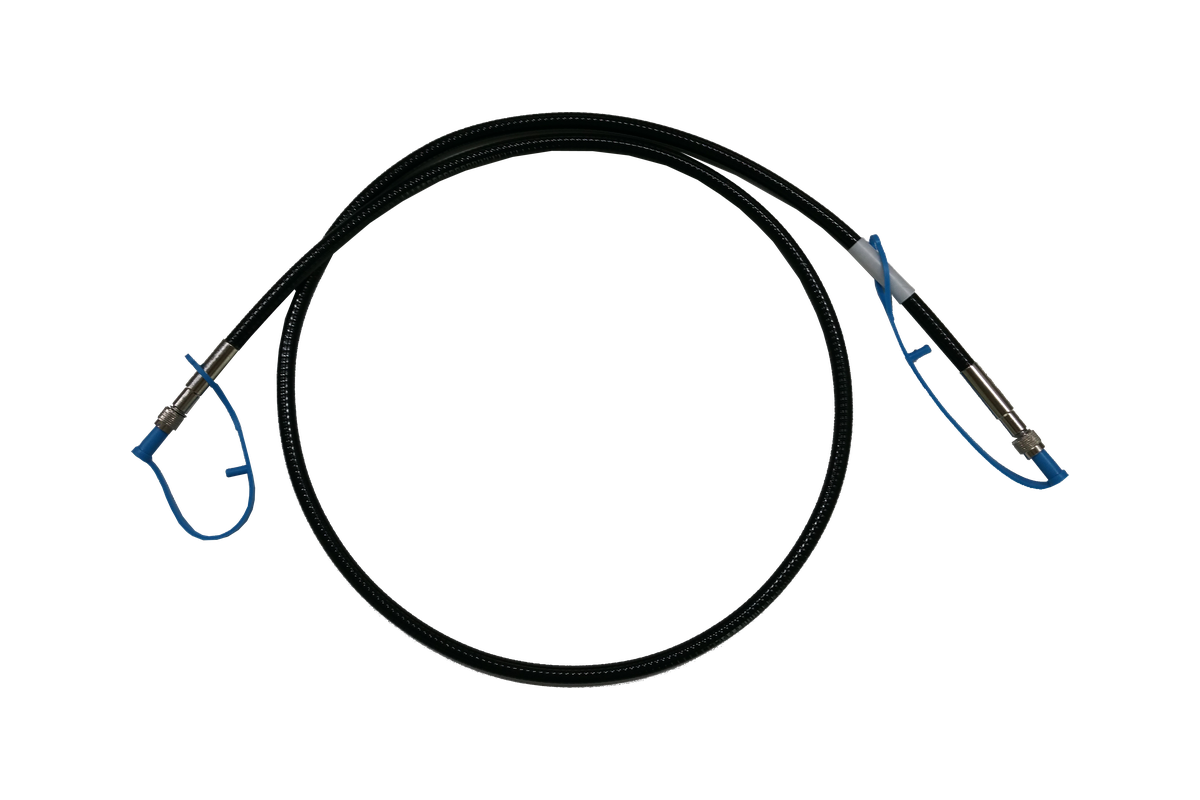

Fiber connection for light source, probe, and spectrometer modules in modular measurement setups.

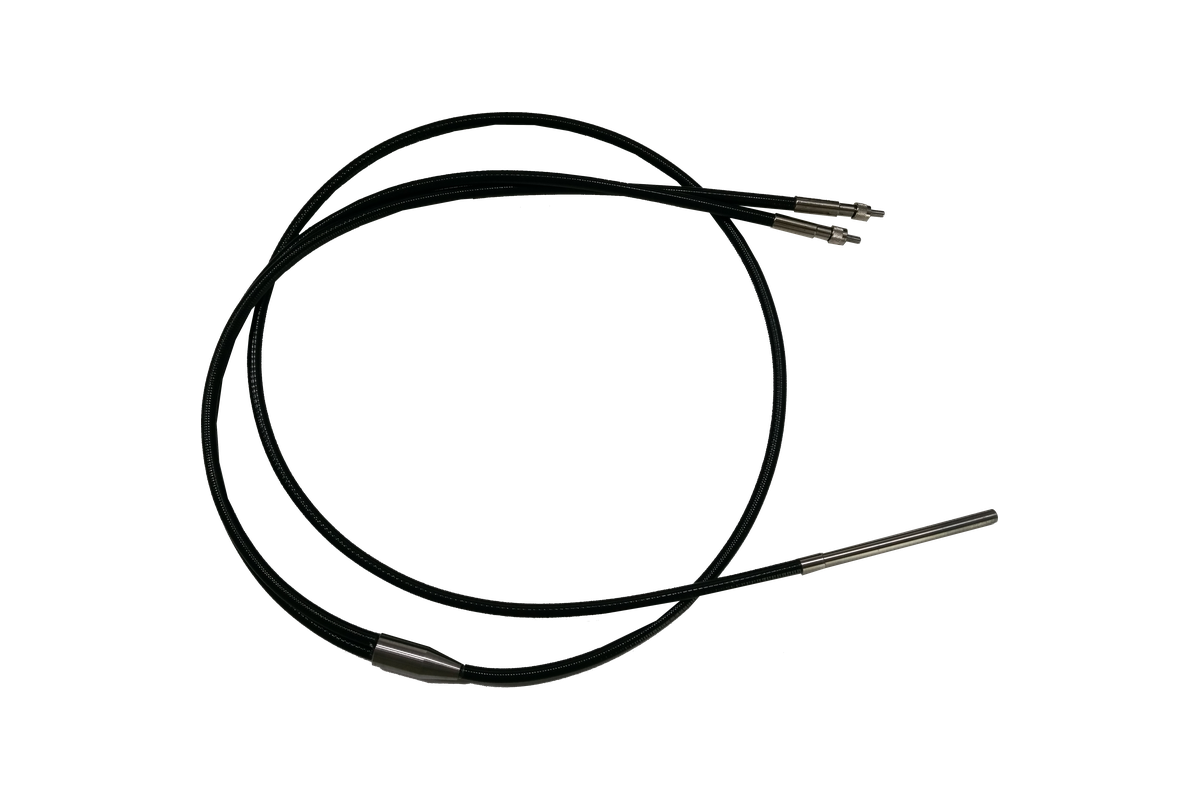

Fiber-coupled probe for delivering illumination and collecting reflected light from the sample surface.
Tell VINE your wavelength range, source type, fiber length, probe geometry, and sample measurement condition.
